LED Video Wall 16.4′ x 9.8′ P3.91mm INDOOR
Original price was: $29,999.00.$24,999.00Current price is: $24,999.00.
- Display Size: 16.4′ x 9.8′
- Pixel Pitch: P3.91mm – 3,840Hz Refresh
- Full Front Service / Magnetic Modules
- Turn-Key Package with Processor & Rigging Bars
- 5-Year Warranty, 100,000h Lifespan
LED Video Wall 16.4′ x 9.8′ P3.91mm INDOOR
Original price was: $29,999.00.$24,999.00Current price is: $24,999.00.
- Display Size: 16.4′ x 9.8′
- Pixel Pitch: P3.91mm – 3,840Hz Refresh
- Full Front Service / Magnetic Modules
- Turn-Key Package with Processor & Rigging Bars
- 5-Year Warranty, 100,000h Lifespan
U.S -Based Team
End-to-end Service
5-Year warranty
2-Day Shipping
Plug-n-play LED Panels
U.S -Based Team
End-to-end Service
5-Year
warranty
Plug-n-play LED Panels
Let's get in touch for your LED screen
Let's get in touch for your LED screen
LED Video Wall 16.4′ x 9.8′ P3.91mm INDOOR
Bring your indoor spaces to life with the 16.4′ x 9.8′ P3.91mm LED video wall. Designed for environments where precision matters, this expansive display turns offices into immersive visual hubs. Every image pops with vibrant color, depth, and sharp detail
ULTRA-HIGH RESOLUTION AT CLOSE RANGE
With a 3.91mm pixel pitch, the display delivers crisp, flawless visuals even from just 15ft (4.5m) away. Wide 140° viewing angles ensure everyone in the room gets the same consistent, striking picture. Ideal for detailed presentations where clarity at close range is critical.
PROFESSIONAL-GRADE RECEIVING CARD
MRV208-1 NovaStar | 3840Hz Refresh Rate
The MRV208-1 receiving card ensures smooth motion, vivid colors, and flicker-free playback. Supporting high grayscale processing, it reproduces content faithfully. Every scene appears rich, fluid, and lifelike.
SIMPLE FRONT-SERVICE MAINTENANCE
Magnetic Module Access
Maintenance is straightforward. Front-access magnetic modules allow quick servicing or replacement without moving the wall. Perfect for permanent setups or high-traffic spaces where uptime is essential, it keeps your display performing reliably with minimal effort.
FREE-STANDING CONFIGURATION
Transform any space into a temporary or mobile showcase with our free-standing setup. Move it, set it, and captivate your audience wherever you need.
WALL-MOUNTED INSTALLATION
For a sleek, permanent solution, mount your LED video wall directly to the wall. This option saves floor space while delivering a clean, professional look.
RIGGING-READY DESIGN
For auditoriums, exhibitions, or large-scale indoor events, the display supports professional rigging for overhead installations.

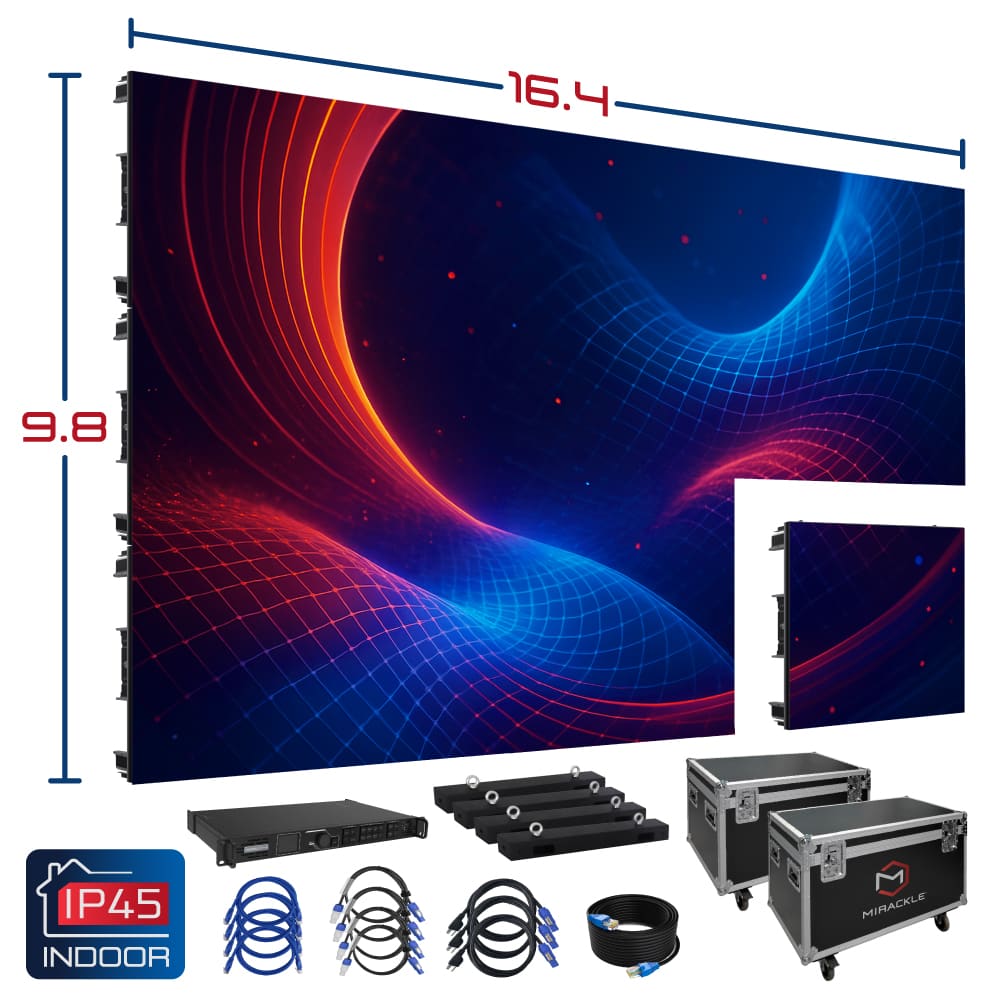

Package Includes
(1) Video Processor with HDMI, DVI and VGA Inputs
(10) Hanging bars for rigging
(60) Mirackle P3.9mm LED Video Panels
(6) Locking power to Edison link cables
(2) Cat6 25ft cable
(60) Data Cat6 cable
(60) Locking power link cables
Spare Parts
Package Includes
(60) Mirackle P3.9mm LED Video Panels
(60) Locking power link cables
(1) Video Processor NovaStar VX6S.
(10) Hanging bars for rigging
(6) Locking power to Edison link cables
(60) Data Cat6 cable
(2) Cat6 25ft cable
Spare parts
View all categories and sizes of our LED displays
View all categories and
sizes of our LED displays
Technical Specifications
Key Features
- Full Front Service / Magnetic Modules
- Turn-key solution
- Easy installation
- Ground support compatible (sold separately)
- Technical support available
- 5-Year warranty included for all parts
- USA-based
- In stock
Power Supply
- Operation Power: 100~240V 50-60Hz
Max. Power - Consumption: 120W/per panel
- Ave. Power Consumption: 60W/per panel
- Connections Power/Data: Locking power In/Out; Data EtherCon In/Out
Control System
- Control Mode: NovaStar Synchronous System with Control via DVI
- Frame Update Frequency: 50-60Hz
- Scan Mode: 1/16
- Refresh Rate: 3840Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Brightness Correction: Pixel, Module, Cabinet
Specs
- Pixel Pitch: 3.91mm
- Full Front Service / Magnetic Modules
- LED Configuration: 3-in-1 SMD2020 LED
- Pixel Density: 128 x 128 per panel
- Size:19.68” x 19.68” x 3” / 500 x 500 x 75mm
- Module Quantity: 4 per panel 250 x 250mm
- Weight: 18lbs. / 8.16Kg
Optical Ratings
- Brightness: 1000 NITS
- Viewing Angle: Horizontal 140°/Vertical 140°
- Minimum View Distance: 15ft/4.5m
- Brightness Adjustment: 0~100% 100 Levels
Environmental
- Operating Life: 100,000 Hours
- Protection Level: IP45 (Front and Back)
Package Includes
- (60) NovaStar P3.9mm Indoor LED video panels
- (1) Video Processor with HDMI, DVI and VGA Inputs
- (10) Hanging bars for rigging
- (4) Cat6 25ft cable
- (60) Data Cat6 link cables
- (60) Locking Power Link Cables
- (2) Locking Power to Edison Cables
- Spare parts included
