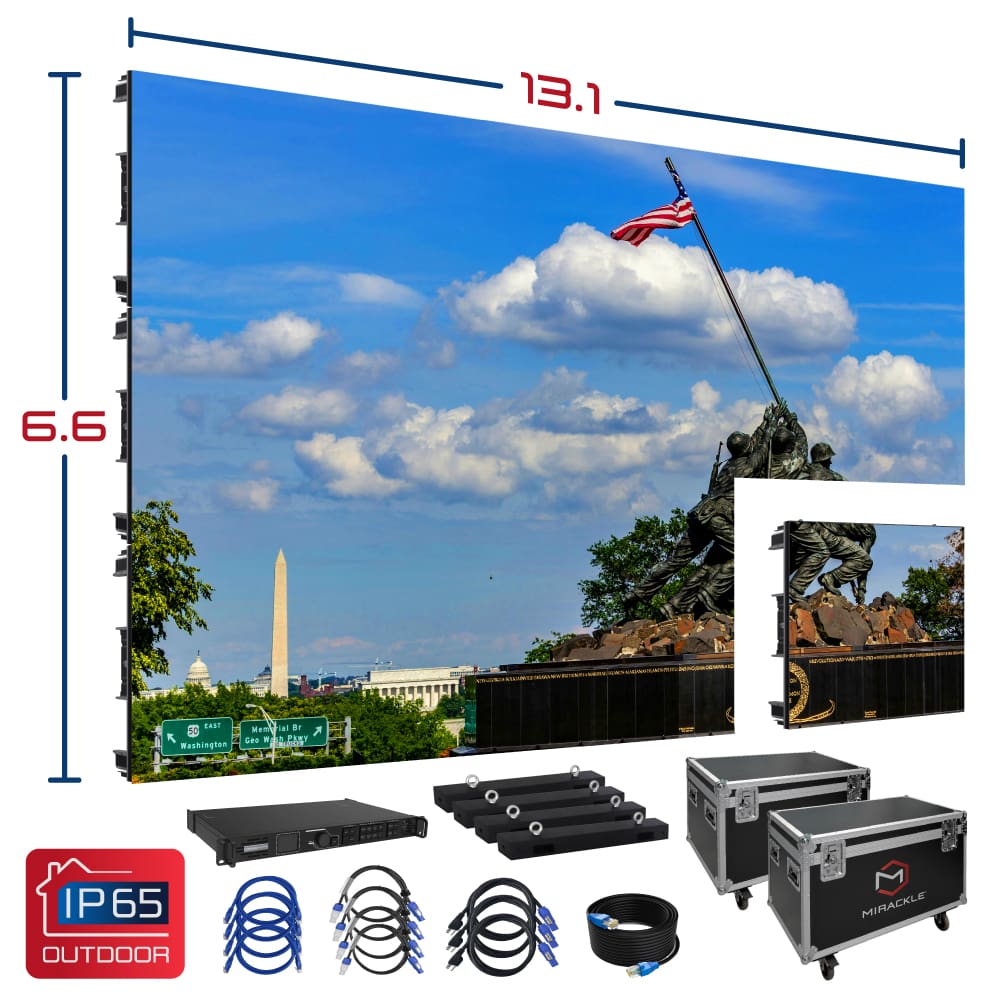

LED Video Wall 13.1′ x 6.6′ P3.91mm Double OUTDOOR

Original price was: $17,589.00.Current price is: $15,289.00.

  • Display Size: 13.1′ × 6.6′
  • 5,500 NITS Brightness – Outdoor IP65 Rated
  • Includes Mirackle Mi1000 Video Processor
  • Rigging Bars, Cables & Spare Parts Included
  • Minimum Viewing Distance: 15 ft

LED Video Wall 13.1′ x 6.6′ P3.91mm Double OUTDOOR

Original price was: $17,589.00.Current price is: $15,289.00.

  • Display Size: 13.1′ × 6.6′
  • 5,500 NITS Brightness – Outdoor IP65 Rated
  • Includes Mirackle Mi1000 Video Processor
  • Rigging Bars, Cables & Spare Parts Included
  • Minimum Viewing Distance: 15 ft

U.S -Based Team

End-to-end Service

5-Year warranty

2-Day Shipping

Plug-n-play LED Panels

U.S -Based Team

End-to-end Service

5-Year
warranty

Plug-n-play LED Panels

Let's get in touch for your LED screen

Let's get in touch for your LED screen

LED Video Wall 13.1′ x 6.6′ P3.91mm Double OUTDOOR

Make a bold statement in any outdoor space with the 13.1′ x 6.6′ P3.91mm Double-Sided LED Screen from American LED Screens. Designed for large-scale events, this display combines striking visuals with rugged durability. Built to endure harsh weather conditions, it delivers content that captures attention from every angle, day or night.

VIVID VISUALS FROM EVERY DISTANCE

Perfect for medium-to-long-range viewing, this wall generates bright images visible even in direct sunlight. With 5500 NITS of brilliance, your messaging stands out in any environment, ensuring every detail pops and remains legible from distances up to 15 feet.

DOUBLE-THE-POWER, DOUBLE-THE-CLARITY

MRV208-1 NovaStar Synchronized Processing

Equipped with the MRV208-1 receiving card, this double-sided display keeps both faces perfectly synchronized. With a 3840Hz refresh rate and 60Hz frame updates, it brings flawless visuals.

DOUBLE-THE-POWER, DOUBLE-THE-CLARITY

MRV208-1 NovaStar Synchronized Processing

Equipped with the MRV208-1 receiving card, this double-sided display keeps both faces perfectly synchronized. With a 3840Hz refresh rate and 60Hz frame updates, it brings flawless visuals.

Grounded Freedom

Perfect for pop-up events, festivals, or urban activations, it provides stability without requiring permanent fixtures.

Rigging & Suspension

Both sides remain fully synchronized, creating a dramatic visual centerpiece that commands attention.

Package Includes

(1) Video Processor Mirackle Mi 1000 with HDMI, DVI and VGA Inputs

(8) Hanging bars for rigging

(16) Mirackle P3.9mm LED Video Panels

(3) Locking power to Edison link cables

(1) Cat6 25ft cable

(16) Data Cat6 cable

(16) Locking power link cables

Spare Parts

Package Includes

(16) Mirackle P3.9mm LED Video Panels

(16) Locking power link cables

(1) Video Processor NovaStar VX6S.

(8) Hanging bars for rigging

(3) Locking power to Edison link cables

(15) Data Cat6 cable

(1) Cat6 25ft cable

Spare Parts

View all categories and sizes of our LED displays

View all categories and
sizes of our LED displays

Technical Specifications

Key Features

  • Turn-key solution
  • Easy installation
  • Technical support available
  • 5-Year warranty included for all parts
  • USA-based
  • In stock

Power Supply

  • Operation Power: 100~240V 50-60Hz
  • Max. Power Consumption: 260W/per panel
  • Ave. Power Consumption: 130W/per panel
  • Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System

  • Control Mode: NovaStar Synchronous System with Control via DVI
  • Frame Update Frequency: 60Hz
  • Scan Mode: 1/16
  • Refresh Rate: 3840Hz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Brightness Correction: Pixel, Module, Cabinet

Specs

  • Pixel Pitch: 3.91mm
    IP65
  • LED Configuration: 3-in-1 SMD1820/1921 LED
  • Pixel Density: 128 x 256 per panel
  • Size: 19.7” x 39.4” x 3” / 500 x 1000 x 75mm
  • Module Quantity: 8 per panel 250 x 250mm
  • Weight: 32lbs. / 14.5Kg

Optical Ratings

  • Brightness: 5500 NITS
  • Viewing Angle: Horizontal 140°/Vertical 140°
  • Distance: 15ft (4.5m)
  • Brightness Adjustment: 0~100% 100 Levels

Environmental

  • Operating Life: 100,000 Hours
  • Protection Level: IP65 (Front and Back)

Control System

  • (16) Mirackle P3.91mm Outdoor LED video panels
  • (1) Video Processor with HDMI, DVI and VGA Inputs
  • (8) Hanging bars for rigging
  • (1) Cat6 25ft cable
  • (16) Data Cat6 link cables
  • (16) Locking Power Link Cables
  • (3) Locking Power to Edison Cables
  • Spare parts included
