LED Video Wall 12.6′ x 6.3′ P5mm OUTDOOR
$14,999.00 Original price was: $14,999.00.$10,599.00Current price is: $10,599.00.
- Display Size: 12.6′ × 6.3′
- 5,200 NITS Brightness – Outdoor IP65 Rated
- Includes Mirackle Mi1000 Video Processor
- Rigging Bars, Cables & Spare Parts Included
- Minimum Viewing Distance: 25 ft
LED Video Wall 12.6′ x 6.3′ P5mm OUTDOOR
$14,999.00 Original price was: $14,999.00.$10,599.00Current price is: $10,599.00.
- Display Size: 12.6′ × 6.3′
- 5,200 NITS Brightness – Outdoor IP65 Rated
- Includes Mirackle Mi1000 Video Processor
- Rigging Bars, Cables & Spare Parts Included
- Minimum Viewing Distance: 25 ft
U.S -Based Team
End-to-end Service
5-Year warranty
2-Day Shipping
Plug-n-play LED Panels

U.S -Based Team

End-to-end Service

5-Year
warranty

Plug-n-play LED Panels
Let's get in touch for your LED screen
Let's get in touch for your LED screen
LED Video Wall 12.6′ x 6.3′ P5mm OUTDOOR
Make your outdoor visuals impossible to ignore with our high-brightness, weatherproof LED video wall. Designed for dynamic advertising, this P5mm display combines clarity, durability, and performance in one turnkey solution. Every component is built to withstand outdoor conditions, ensuring reliable operation no matter the environment.
Bright, Vivid, and Visible from Distance
With a 5mm pixel pitch and 5200 NITS of brightness, this display delivers sharp videos even under direct sunlight. Perfect for outdoor spaces where viewers are 25 ft (7.6 m) away, the P5mm panel creates immersive visuals that grab attention and communicate your message effectively.
Advanced Processing with MRV208-1 NovaStar
MRV208-01 NovaStar 7680 Hz
Engineered for smooth motion and precise color, the MRV208-1 NovaStar transmitter card supports a 3840Hz refresh rate. It ensures flicker-free playback, deep color accuracy, and minimal latency, making it ideal for outdoor digital signage.
Advanced Processing with MRV208-1 NovaStar
MRV208-01 NovaStar 7680 Hz
Engineered for smooth motion and precise color, the MRV208-1 NovaStar transmitter card supports a 3840Hz refresh rate. It ensures flicker-free playback, deep color accuracy, and minimal latency, making it ideal for outdoor digital signage.
Free-Standing Installation
A free-standing configuration lets your LED display panel shine without permanent mounting. Each panel is supported by a stable base engineered to safely handle the full structure.
Suspended Installation
Suspending the video wall delivers a dramatic, high-visibility presentation that captures attention from all angles. Panels are designed for secure suspension, even in outdoor conditions, ensuring a safe and striking display.

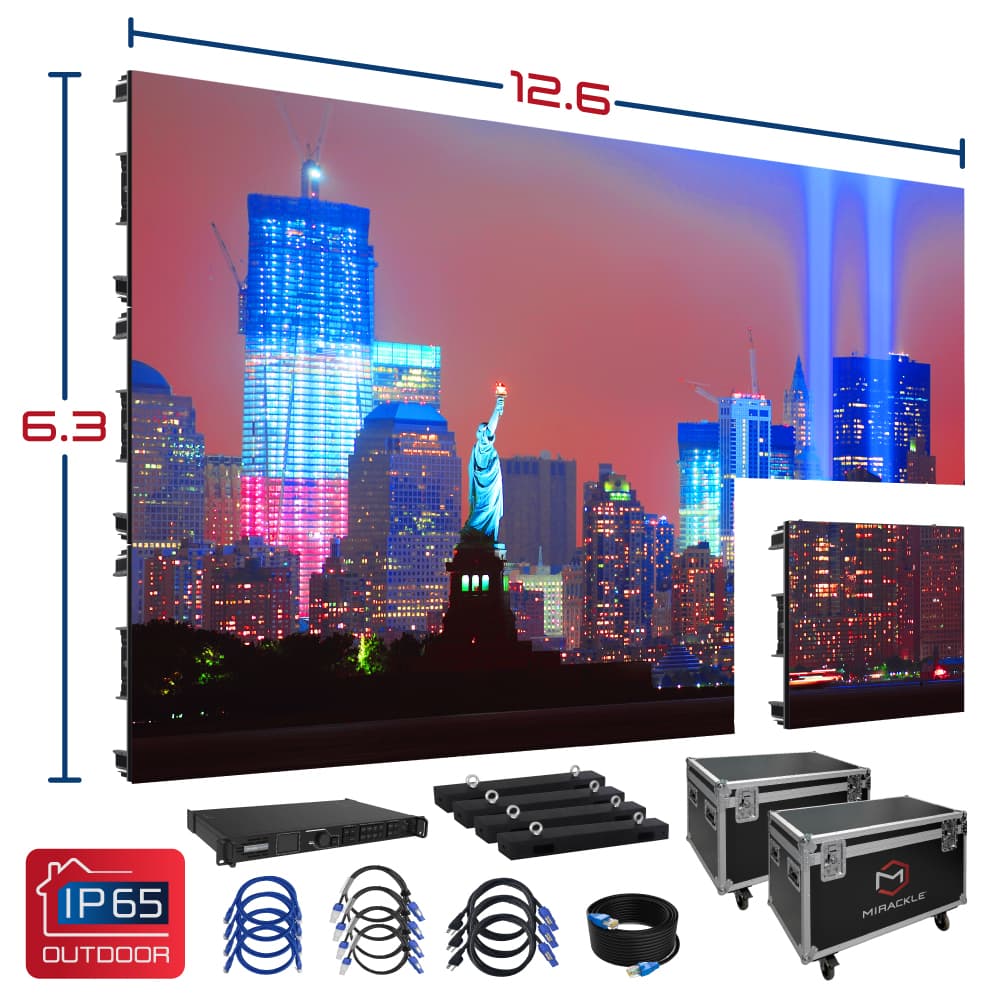

Package Includes
(1) Video Processor Mirackle Mi 1000 with HDMI, DVI and VGA Inputs
(4) Haggins bars for rigging
(8) Mirackle P5mm LED Video Panels
(4) Locking power to Edison link cables
(1) Cat6 25ft cable
(8) Data Cat6 cable
(8) Locking power link cables
Spare Parts
Package Includes
(8) Mirackle P1.5mm LED Video Panels
(8) Locking power link cables
(1) Video Processor Mirackle Mi 1000 with HDMI, DVI and VGA Inputs
(4) Haggins bars for riggin.
(4) Locking power to Edison link cables
(8) Data Cat6 cable
(1) Cat6 25ft cable
Spare parts
View all categories and sizes of our LED displays
View all categories and
sizes of our LED displays
Technical Specifications
Key Features
- Turn-key solution
- Easy installation
- Technical support available
- 5-Year warranty included for all parts
- USA-based
- In stock
Power Supply
- Operation Power: 100~240V 50-60Hz
- Max. Power Consumption: 425W/per panel
- Ave. Power Consumption: 240W/per panel
- Connections Power/Data: Locking power In/Out; Data EtherCon In/Out
Control System
- Control Mode: NovaStar Synchronous System with Control via DVI
- Frame Update Frequency: 50-60Hz
- Scan Mode: 1/8
Refresh Rate: 3840Hz - Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Brightness Correction: Pixel, Module, Cabinet
Specs
- Pixel Pitch: 5mm
- LED Configuration: 3-in-1 SMD1820/1921 LED
- Pixel Density: 192 x 192 per panel
- Size: 37.8” x 37.8” x 3.5” / 960 x 960 x 88mm
- Module Quantity: 18 per panel 320 x 160mm
- Weight: 62lbs. / 30.9Kg
Optical Ratings
- Brightness: 5200 NITS
- Viewing Angle: Horizontal 140°/Vertical 140°
- Distance: 25ft
- Brightness Adjustment: 0~100% 100 Levels
Environmental
- Operating Life: 100,000 Hours
- Protection Level: IP65 (Front and Back)
Control System
- (8) NovaStar P5mm LED video panels
- (1) Video Processor Mirackle Mi 1000 with HDMI, DVI and VGA Inputs
- (4) Hanging bars for rigging
- (1) Cat6 25ft cable
- (8) Data Cat6 link cables
- (8) Locking Power Link Cables
- (4) Locking Power to Edison Cables
- Spare parts included
