Newsroom LED Wall in P1.53mm for Interview Sets, Live Broadcasts, and Media Production

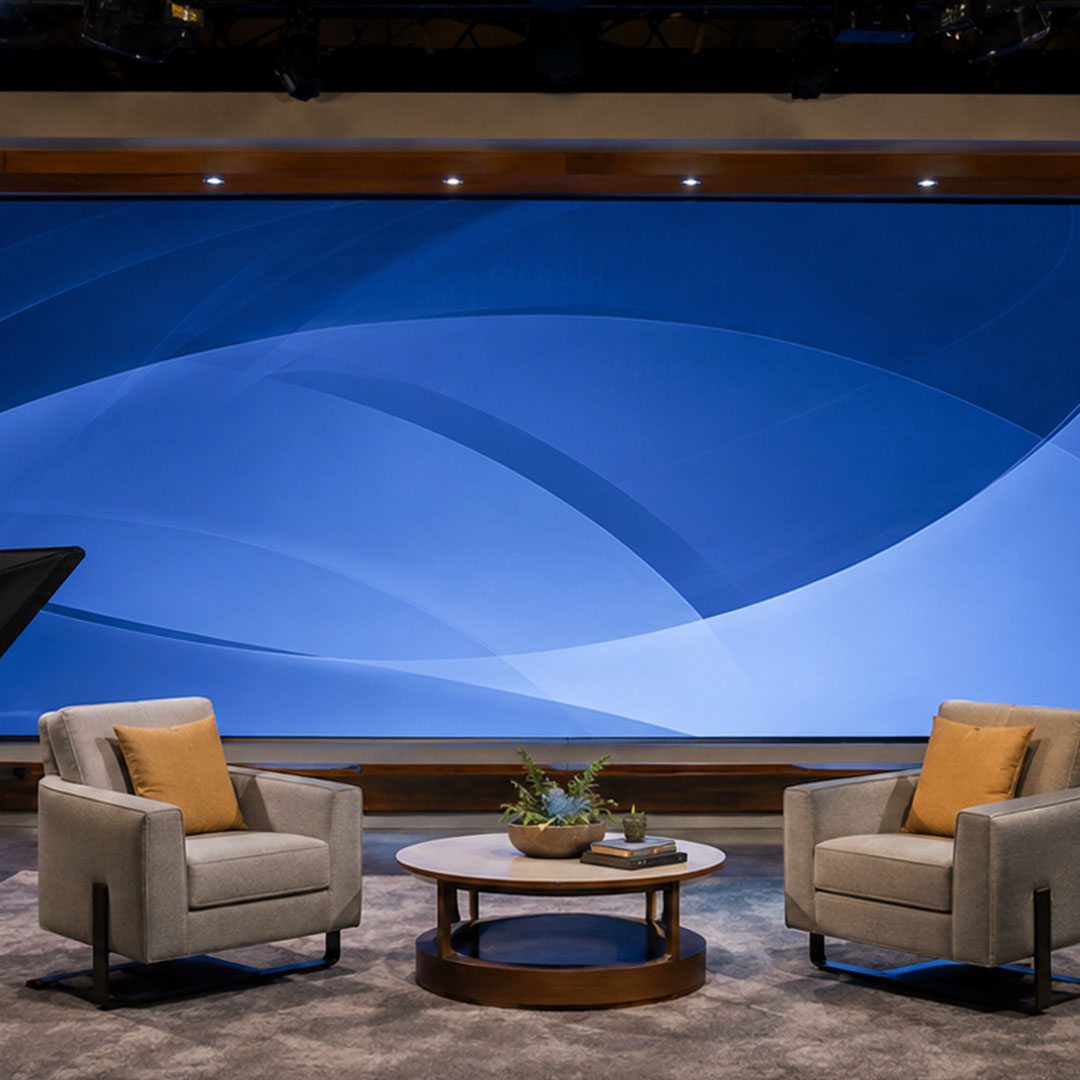

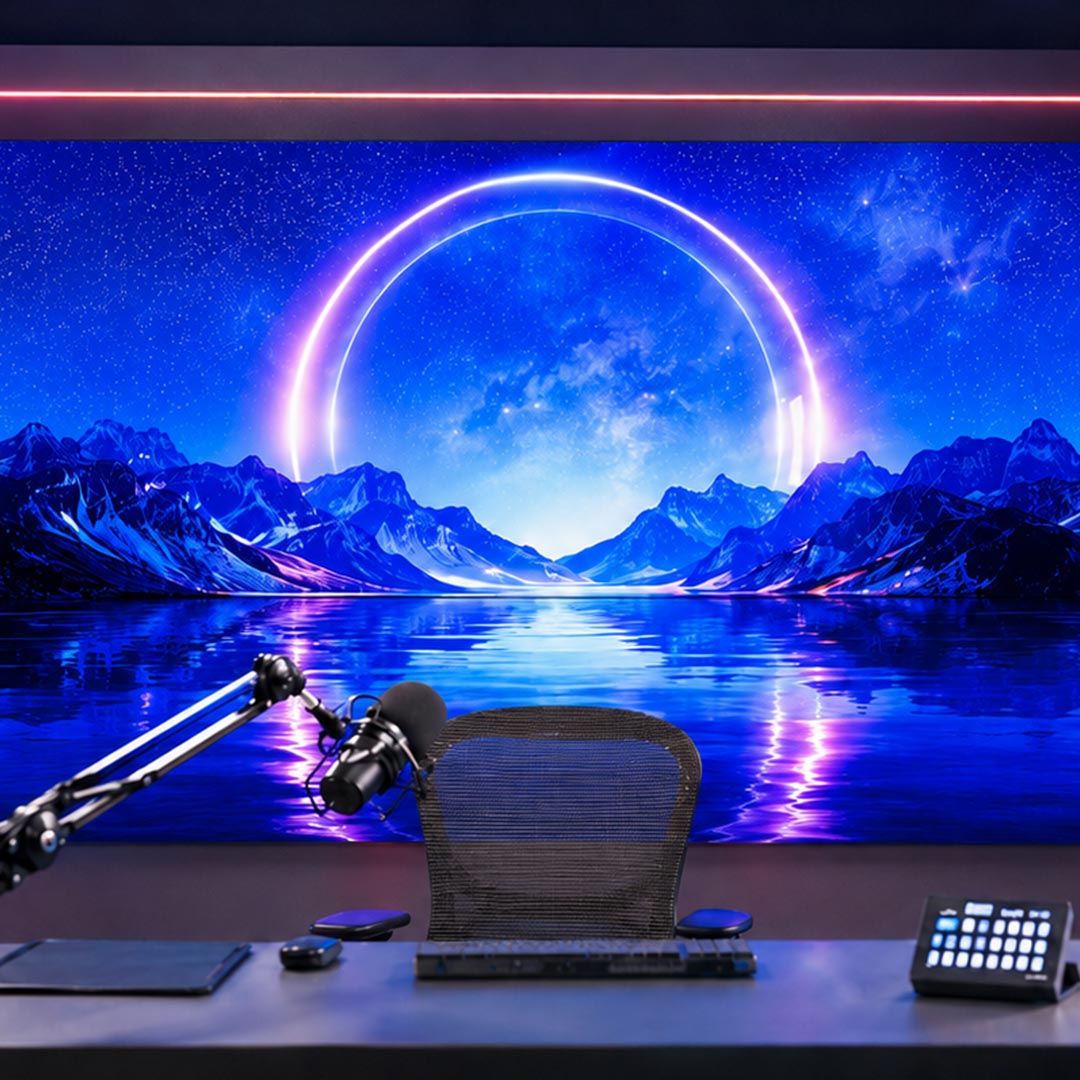

A newsroom background has to do more than look good in the room. It has to hold up under cameras, lights, close framing, and live production pressure. This P1.53mm LED screen is designed for interview sets, anchor desks, podcast studios, corporate broadcasts, press rooms, and media production spaces where the screen becomes part of the visual identity of the show. It gives production teams a clean, flexible digital backdrop for branded graphics, live feeds, motion backgrounds, breaking-news visuals, and professional studio content.
CLOSE-UP READY PIXEL DETAIL
When the LED displau sits behind a host, guest, or news desk, every pixel matters. The 1.53mm pitch is built for short viewing distances, delivering a clean image from around 3ft without the screen feeling coarse or distracting on camera. It works especially well for tight interview shots, seated panels, over-the-shoulder graphics, and studio layouts where the background is part of the frame, not just decoration.
STABLE BACKGROUNDS FOR LIVE PRODUCTION
A8s-N NovaStar / 3840Hz Receiving Card
In a live studio, the LED screen cannot pull attention for the wrong reason. The A8s-N NovaStar receiving card and 3840Hz refresh rate help keep visual playback clean for animated news graphics, branded loops, virtual set elements, sponsor visuals, data screens, and live production media. The goal is simple: a background that supports the broadcast instead of becoming a technical distraction.
SIMPLIFIED MAINTENANCE
FRONT-SERVICE MAGNETIC MODULES
Built for fast and efficient servicing, this video wall features magnetic modules that can be accessed directly from the front. Technicians can handle repairs, replacements, or upgrades quickly without requiring rear access or dismantling the display.
GROUND SUPPORT
Not every production space is designed for a permanent wall installation. Ground support gives the LED wall its own engineered base, making it useful for temporary studios, rented spaces, press rooms, podcast sets, or media environments where drilling into the wall is not the best option.
WALL MOUNTED
For newsrooms and interview sets that need a consistent, built-in look, wall mounting keeps the LED screen fixed in the visual language of the studio. The display becomes part of the set architecture, helping create a polished background for anchor desks, guest interviews, corporate announcements, and branded media content.
RIGGING
This method works well for broadcast events, live panels, press conferences, studio stages, and media rooms where the screen must be visible without interrupting the camera floor. It gives the setup a more production-grade presence while keeping the main working area open.
Package Includes
(2) Video Processor Mirackle Mi 1000. With HDMI, DVI and VGA inputs.
(5) Hanging bars for rigging
(20) Mirackle P1.5mm LED Video Panels
(3) Locking power to Edison link cables
(1) Cat6 25ft cable
(20) Data Cat6 cable
(20) Locking power link cables
Spare Parts
Package Includes
(20) Mirackle P1.5mm LED Video Panels
(20) Locking power link cables
(1) Video Processor NovaStar VX6S.
(5) Hanging bars for rigging
(2) Locking power to Edison link cables
(15) Data Cat6 cable
(1) Cat6 25ft cable
Spare parts
View all categories and sizes of our LED displays
View all categories and
sizes of our LED displays
Technical Specifications
Key Features
- Full Front Service / Magnetic Modules
- Turn-key solution
- Easy installation
- Ground support compatible (sold separately)
- Technical support available
- 5-Year warranty included for all parts
- USA-based
- In stock
Power Supply
- Operation Power: 100~240V 50-60Hz
- Max. Power Consumption: 140W/per panel
- Ave. Power Consumption: 70W/per panel
- Connections Power/Data: Locking power In/Out; Data EtherCon In/Out
Control System
- Control Mode: NovaStar Synchronous System with Control via DVI
- Frame Update Frequency: 50-60Hz
- Scan Mode: 1/28
- Refresh Rate: 3840Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Brightness Correction: Pixel, Module, Cabinet
Specs
- Pixel Pitch: 1.53mm
- High Refresh Rate: 3840hz
- Full Front Service / Magnetic Modules
- LED Configuration:
3-in-1 SMD1212 LED - Pixel Density: 416 x 312 per panel
- Size: 25.2” x 18.9” x 2.9” / 640 x 480 x 75mm
- Module Quantity:
6 per panel 320 x 160mm - Weight: 21.6lbs / 9.8Kg
Optical Ratings
- Brightness: 1000 NITS
- Viewing Angle: Horizontal 140°/Vertical 140°
- Distance: 3ft
- Brightness Adjustment: 0~100% 100 Levels
Environmental
- Operating Life: 100,000 Hours
- Protection Level: IP45 (Front and Back)
Control System
- (20) Mirackle P1.53mm Indoor LED video panels
- (1) Video Processor Mirackle MI-1000 with HDMI, DVI and VGA Inputs
- (2) NovaStar Mctrl300 sending card
- (5) Hanging bars for rigging
- (5) Cat6 25ft cable
- (20) Data Cat6 link cables
- (20) Locking Power Link Cables
- (3) Locking Power to Edison Cables
- Spare parts included
