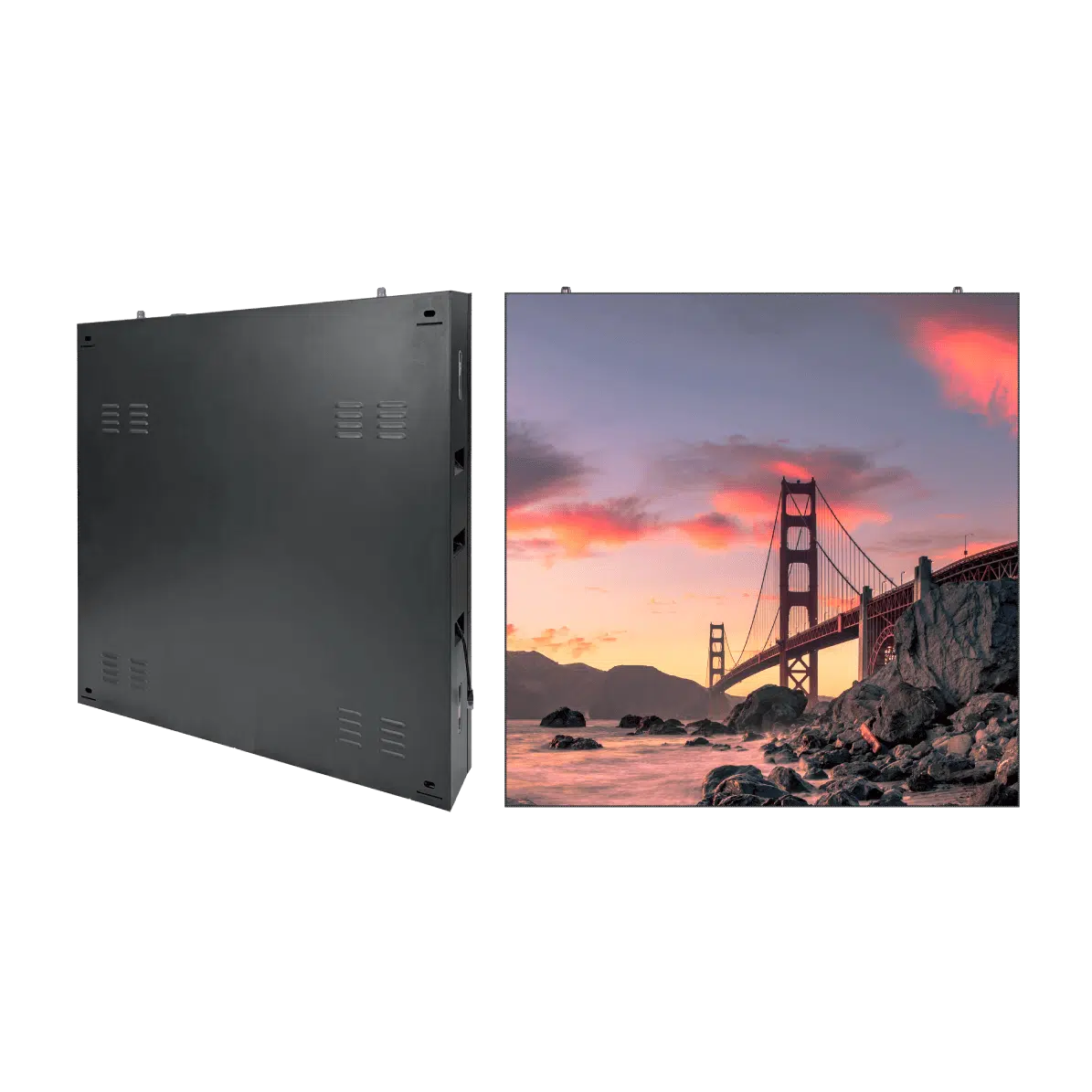

LED Video Panel P5mm Fixed OUTDOOR

Original price was: $1,699.00.Current price is: $1,599.00.

  • Full Front & Back Serviceable Design
  • Optimized for Fixed Wall Installations
  • 5,200 NITS Brightness, IP65 Protection
  • Minimum Viewing Distance: 25 ft
  • 100,000 Hours Operating Life

LED Video Panel P5mm Fixed OUTDOOR

Original price was: $1,699.00.Current price is: $1,599.00.

  • Full Front & Back Serviceable Design
  • Optimized for Fixed Wall Installations
  • 5,200 NITS Brightness, IP65 Protection
  • Minimum Viewing Distance: 25 ft
  • 100,000 Hours Operating Life

U.S -Based Team

End-to-end Service

5-Year warranty

2-Day Shipping

Plug-n-play LED Panels

U.S -Based Team

End-to-end Service

5-Year
warranty

Plug-n-play LED Panels

Let's get in touch for your LED screen

Let's get in touch for your LED screen

LED Video Panel P5mm Fixed OUTDOOR

Bring your outdoor visuals to life with our high-performance P5mm LED video wall. Built to withstand the elements while delivering stunning clarity, it’s perfect for stadiums, outdoor events, digital billboards, or public spaces where sharp imagery is essential. Every aspect is designed for durability, easy installation, and flawless performance with modern display technology.

Minimum view distance

With a brilliant 5200 NITS brightness, this video wall ensures your content remains clear and legible even under direct sunlight. The IP65-rated design protects against dust and water, making it reliable in all weather conditions. Each panel weighs 90 lb (41 kg), providing stability and long-term durability; ideal for extended advertising campaigns or permanent outdoor installations.

ADVANCED SENDING CARD Technology

NovaStar MRV208-1

Experience smooth playback thanks to refresh rates up to 3840Hz. The NovaStar MRV208-1 sending card delivers precise color, deep contrast, and flicker-free performance (even for broadcast-quality recordings) ensuring every frame looks just right.

FULL FRONT SERVICEABILITY

Magnetic Modules for Easy Maintenance

Our video wall is designed for full front access. Magnetic modules make maintenance quick and simple, even without rear access. Repairs or module replacements can be done in seconds, minimizing downtime during events or busy installations.

Wall Mountable

Is the most common support and above all the most stable considering the type of construction where is mounted, since it is screwed through.

Free standing

Bar and ladder truss that creates a stable system to support your screen in various configurations and offers flexibility in height as well as width.

Wall Mountable

Is the most common support and above all the most stable considering the type of construction where is mounted, since it is screwed through.

Rigging

Manufactured with heavy-duty aluminum material, ideal for overhead truss system, a ceiling grid, a crane, or other support structure from above.

Package Includes

Video Processor NovaStar VX6S.

Haggins bars for riggin.

Mirackle P5mm LED Video Panels

Locking power to Edison link cables

Cat6 25ft cable

Data Cat6 cable

Locking power link cables

Mirackle P1.5mm LED Video Panels

Package Includes

Mirackle P1.5mm LED Video Panels

Locking power link cables

Video Processor NovaStar VX6S.

Haggins bars for riggin.

Locking power to Edison link cables

Data Cat6 cable

Cat6 25ft cable

Spare Parts

View all categories and sizes of our LED displays

View all categories and
sizes of our LED displays

Technical Specifications

Key Features

  • Turn-key solution
  • Easy installation
  • Technical support available
  • 5-Year warranty included for all parts
  • USA-based
  • In stock

Power Supply

  • Operation Power: 100~240V 50-60Hz
  • Max. Power Consumption: 425W/per panel
  • Ave. Power Consumption: 240W/per panel
  • Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System

  • Control Mode: NovaStar Synchronous System with Control via DVI
  • Frame Update Frequency: 50-60Hz
  • Scan Mode: 1/8
  • Refresh Rate: 3840Hz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Brightness Correction: Pixel, Module, Cabinet

Specs

  • Pixel Pitch: 5mm
  • LED Configuration: 3-in-1 SMD1820/1921 LED
  • Pixel Density: 192 x 192 per panel
  • Size: 960 x 960 x 120mm / 37.8” x 37.8” x 4 3/4”
  • Module Quantity: 18 per panel 320 x 160mm
  • Weight: 62lbs. / 30.9Kg

Optical Ratings

  • Brightness: 5200 NITS
  • Viewing Angle: Horizontal 140°/Vertical 140°
  • Distance: 25ft (7.6m)
  • Brightness Adjustment: 0~100% 100 Levels

Environmental

  • Operating Life: 100,000 Hours
  • Protection Level: IP65 (Front and Back)
