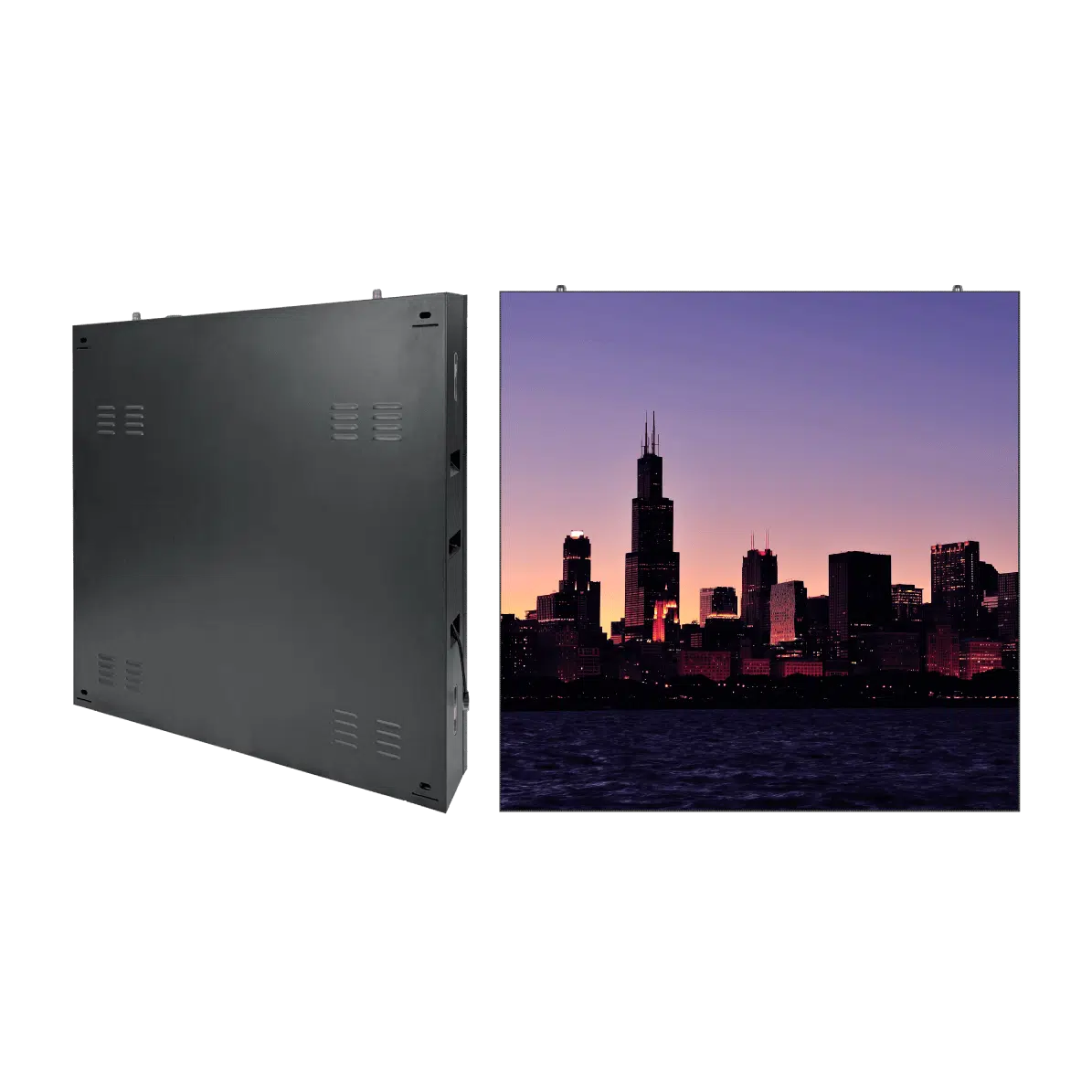

LED Video Panel P2.97mm 1000×1000 FIXED-IRON OUTDOOR
Make your outdoor visuals unforgettable with our P2.97mm 1000×1000 fixed-iron LED panel. Designed for long-term outdoor installations, this rugged display combines impressive clarity, exceptional brightness, and professional-grade reliability. Its sturdy iron frame delivers stability and endurance even in harsh weather.
HIGH-DEFINITION VISUALS ALWAYS
With a brightness of 5500 NITS and a 0–100% dimming range across 100 levels, your content stays vibrant and readable in any lighting. The 2.97mm pixel pitch ensures razor-sharp details, perfect for close-up viewing and capturing the attention of large audiences.
NEXT-GEN SIGNAL PROCESSING
NovaStar MRV416
Enjoy smooth, flicker-free motion with a 3840Hz refresh rate and the advanced NovaStar MRV416 sending card. Deep grayscale and precise color reproduction make every image look flawless, giving your outdoor installation a high-end, polished appearance.
STREAMLINED SERVICE FOR LARGE WALLS
Effortless Access for Heavy-Duty Panels
Despite its robust iron frame, this panel is designed for easy front servicing. Modules can be quickly removed and replaced with magnetic attachments, so technicians can perform maintenance without complicated disassembly or rear access. This practical design keeps large outdoor walls up and running with minimal downtime.
PERMANENT OUTDOOR STRENGTH
These panels are engineered for permanent installations. This ensures maximum stability, so your display performs flawlessly through wind, rain, and other environmental challenges.
Free standing
Bar and ladder truss that creates a stable system to support your screen in various configurations and offers flexibility in height as well as width.
Wall Mountable
Is the most common support and above all the most stable considering the type of construction where is mounted, since it is screwed through.
Rigging
Manufactured with heavy-duty aluminum material, ideal for overhead truss system, a ceiling grid, a crane, or other support structure from above.
Package Includes
Video Processor NovaStar VX6S.
Hanging bars for rigging
Mirackle P2.9mm Fixed Iron LED Video Panels
Locking power to Edison link cables
Cat6 25ft cable
Data Cat6 cable
Locking power link cables
Spare Parts
Package Includes
Mirackle P2.9mm Fixed Iron LED Video Panels
Locking power link cables
Video Processor NovaStar VX6S.
Hanging bars for rigging
Locking power to Edison link cables
Data Cat6 cable
Cat6 25ft cable
Spare Parts
View all categories and sizes of our LED displays
View all categories and
sizes of our LED displays
Technical Specifications
Key Features
- Turn-key solution
- Easy installation
- Technical support available
- 5-Year warranty included for all parts
- USA-based
- In stock
Power Supply
- Operation Power: 100~240V 50-60Hz
- Max. Power Consumption: 800W/per panel
- Ave. Power Consumption: 400W/per panel
- Connections Power/Data: Locking power In/Out;
Data EtherCon In/Out
Control System
- Control Mode: NovaStar Synchronous System with Control via DVI
- Frame Update Frequency: 50-60Hz
- Scan Mode: 1/21s
- Refresh Rate: 3840Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Brightness Correction: Pixel, Module, Cabinet
Specs
- Pixel Pitch: 2.97mm
- High Refresh Rate: 3840hz
- Full Front Service / Magnetic Modules
- LED Configuration: King-Light SMD1515
- Pixel Density: 336 x 336 per panel
- Size: 1000 x 1000 x 120 mm / 39.4″ x 39.4″ x 4 3/4″
- Module Quantity: 6 per panel 320 x 160mm
- Weight: 88 lb / 40 kg
Optical Ratings
- Brightness: 5500 NITS
- Viewing Angle: Horizontal 140°/Vertical 140°
- Distance: 10ft (3m)
- Brightness Adjustment: 0~100% 100 Levels
Environmental
- Operating Life: 100,000 Hours
- Protection Level: IP65 (Front and Back)
