LED Video Panel P2.5mm MRV208 500×500 INDOOR

Original price was: $799.00.Current price is: $549.00.

  • Pixel Pitch: 2.5mm – Sharp Close-View Detail
  • Refresh Rate: 7,680Hz NovaStar MRV208
  • Minimum Viewing Distance: 6 ft
  • Full Front Service Magnetic Modules

LED Video Panel P2.5mm MRV208 500×500 INDOOR

Original price was: $799.00.Current price is: $549.00.

  • Pixel Pitch: 2.5mm – Sharp Close-View Detail
  • Refresh Rate: 7,680Hz NovaStar MRV208
  • Minimum Viewing Distance: 6 ft
  • Full Front Service Magnetic Modules

U.S -Based Team

End-to-end Service

5-Year warranty

2-Day Shipping

Plug-n-play LED Panels

U.S -Based Team

End-to-end Service

5-Year
warranty

Plug-n-play LED Panels

Let's get in touch for your LED screen.

Let's get in touch for your LED screen.

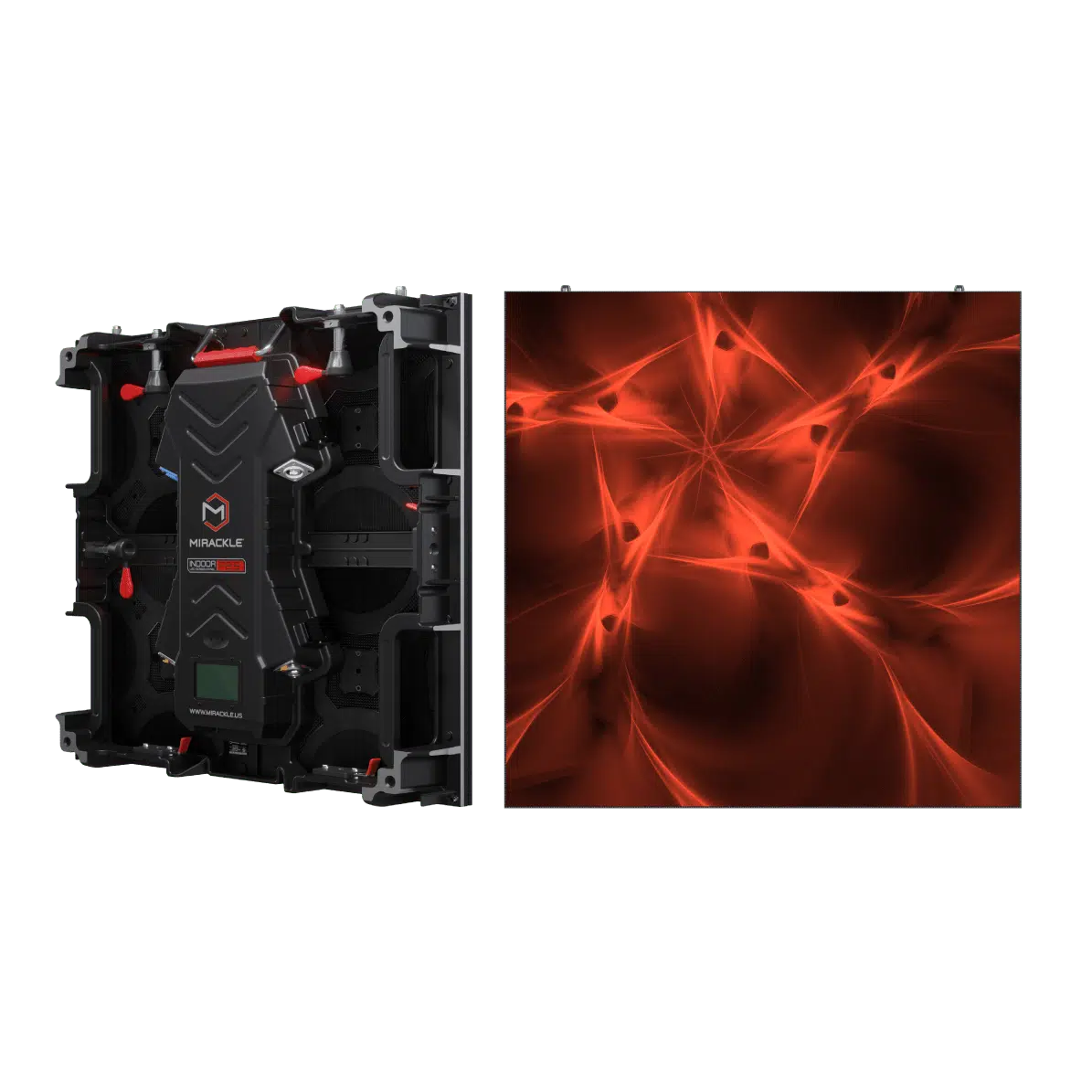

LED Video Panel P2.5mm MRV208 500×500 INDOOR

Bring your visuals to life with our indoor LED video panel, designed to deliver high-quality performance in a compact 500x500mm frame. Whether you’re setting up for a corporate space, a digital signage project, or a high-traffic display, this panel offers a neat professional presentation that’s built to last and easy to maintain.

CLOSE-VIEW PERFORMANCE

With a pixel pitch of just 2.5mm, this panel is ideal for short-distance viewing (as close as six feet). It’s a smart pick for lobby screens, interactive collocations, or any setting where detail matters. You’ll get precise visuals that hold up to both close inspection and longer viewing distances.

Precision-Controlled Display Output

NOVASTAR MRV208 RECEIVING CARD

This panel comes equipped with the NovaStar MRV208-1 transmitter card, giving you stable, smooth playback thanks to a 7680Hz refresh rate. Whether you’re running fast-moving graphics or switching between content types in a corporate setting, your graphics will remain fluid, and free from flicker; even when viewed through a camera lens.

SIMPLE FRONT ACCESS DESIGN

Modular Magnet System for Quick Maintenance

No need to get behind the wall to make a fix. Each panel features a front-facing magnetic module system, making it easy to remove or replace components on the spot. It’s a user-friendly setup for techs and a lifesaver in tight spaces, especially for built-in installations.

FREE-STANDING STRUCTURE

If you need your display to travel or change locations often, the P2.5mm module can be set up as a free-standing structure using modular support frames and a stable base. It’s a great solution wherever you need a reliable screen without permanent fixtures. Just assemble, power up, and you’re good to go.

WALL-MOUNTABLE DESIGN

For spaces where design matters, the wall-mounted option offers a clean, low-profile look. These 500x500mm panels align perfectly edge-to-edge and mount flush to the wall, giving your space a seamless digital display. Ideal for anywhere aesthetics and efficiency need to go hand in hand.

OVERHEAD RIGGING OPTION

Planning a larger display above eye level? These modules are compatible with rigging hardware, allowing for secure suspension from ceilings or trusses. Each panel weighs just 16 lbs, so they’re easy to work with and safe to hang in all kinds of venues. Lightweight but tough, they execute strong images without compromising on safety.

Package Includes

Video Processor NovaStar VX6S.

Haggins bars for riggin.

Mirackle P2.5mm LED Video Panels

Locking power to Edison link cables

Cat6 25ft cable

Data Cat6 cable

Locking power link cables

Spare parts

Package Includes

Mirackle P2.5mm LED Video Panels

Locking power link cables

Video Processor NovaStar VX6S.

Haggins bars for riggin.

Locking power to Edison link cables

Data Cat6 cable

Cat6 25ft cable

Sparte Parts

View all categories and sizes of our LED displays

View all categories and
sizes of our LED displays

Technical Specifications

Key Features

  • Full Front Service / Magnetic Modules
  • Turn-key solution
  • Easy installation
  • Ground support compatible (sold separately)
  • Technical support available
  • 5-Year warranty included for all parts
  • USA-based
  • In stock

Power Supply

  • Operation Power: 100~240V 50-60Hz
  • Power Consumption: 200W/per panel
  • Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System

  • Control Mode: NovaStar Synchronous System with Control via DVI
  • Frame Update Frequency: 50-60Hz
  • Scan Mode: 1/28
  • Refresh Rate: 7680hHz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Brightness Correction: Pixel, Module, Cabinet

Specs

  • Pixel Pitch: 2.5mm
  • High Refresh Rate: 7680hhz
  • Full Front Service / Magnetic Modules
  • LED Configuration: 3-in-1 SMD2020 LED
  • Pixel Density: 200 x 200 per panel
  • Size: 500 x 500 x 75mm / 19.7″ x 19.7″ x 3″
  • Weight: 1.6lbs / 7.5Kg

Optical Ratings

  • Brightness: 1000 NITS
  • Viewing Angle: Horizontal 140°/Vertical 140°
  • Distance: 6ft (1.8m)
  • Brightness Adjustment: 0~100% 100 Levels

Environmental

  • Operating Life: 100,000 Hours
  • Protection Level: IP45 (Front and Back)
